Definition
The Iterator Pattern provides a way to access the elements of an aggregate object sequentially without exposing its underlying representation.
Real World Analogy
The Iterator Pattern is used to access elements from a collection of objects (like ArrayList, LinkedList, Stack, Queue, or a raw Array) without exposing the collection’s internal structure. Without this pattern, iterating over different collection types would be tedious, often requiring you to write custom access logic (new methods or classes) for each underlying collection type. The Iterator Pattern provides a unified way to access the elements of all these different collections.
Suppose we are at a food court, and we have various food options from different sellers. The twist is that each seller has a different way of implementing their menu internally. For instance,
- Shop 1’s menu is based on an
ArrayListimplementation - Shop 2 uses a
LinkedList - Shop 3 uses a raw
Array, and so on.
To display the full menu to customers, we need a way to combine and iterate over the menus from all the shopkeepers. We’ll refer to the component responsible for showing the complete menu as the Waitress. The Waitress needs to get the menus from every shop.
Let’s focus on two shops: a Dinner shop and a Dessert shop. The DinnerMenu uses an ArrayList implementation, while the DessertMenu uses a fixed-size Java array. Each shop has its own strategy for managing its menu items.
If the Waitress were to iterate over these menus directly, she would need to check the underlying implementation of each menu and use specific iteration logic (e.g., a for loop for the array, a different loop for the ArrayList). If any new shop arrived with a different underlying collection, we would have to entirely change the implementation of the Waitress.
This is where the Iterator Pattern provides a clean solution. Although Java already provides the Iterator interface within its Collections Framework (which nearly all built-in collections use), this pattern shows us how to apply this abstraction to custom collections.
For any new shop that comes up with its own unique menu implementation, the shopkeeper just needs to create an Iterator for their specific collection type to integrate with the Food Court. The Waitress then only deals with the standard Iterator interface. She can easily add the new menu to her list, and the Iterator handles the logic of accessing the objects, regardless of the menu’s internal structure.

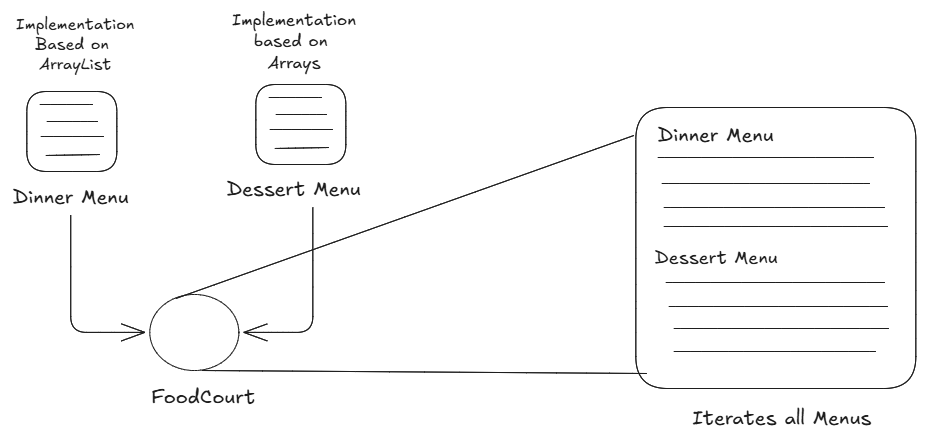

Diagram explaining iteration over different menus.
Design
classDiagram class MenuItem { -String Name -String Description -int Price } class Menu { <<interface>> +createIterator() Iterator } class DinnerMenu { -ArrayList~MenuItem~ menuItems +addItem(String name, String description, int price) +createIterator() Iterator } class DessertMenu { -final int SIZE -int numberofItem -MenuItem[] items +addItem(String name, String description, int price) +createIterator() Iterator } class DessertMenuIterator { -MenuItem[] items -int position +hasNext() boolean +next() MenuItem +remove() void } class Waitress { -List~Menu~ menus +printMenu() void -printMenu(Iterator~MenuItem~ iterator) void } %% Relationships Menu <|.. DinnerMenu Menu <|.. DessertMenu Iterator <|.. DessertMenuIterator DessertMenu --> DessertMenuIterator : creates DinnerMenu --> MenuItem : contains DessertMenu --> MenuItem : contains Waitress --> Menu : uses
Class Diagram for Iterator Pattern.
Implementation in Java
To implement the Iterator Pattern, the Waitress will now depend on the standard Java Iterator interface for accessing collections of Menus and MenuItems from the various food court shops.
We will use standard Java List and Iterator interfaces in our implementation.
MenuItem is the base class representing a single item on the menu, holding its name, description, and price.
import java.util.ArrayList;
import java.util.Iterator;
import java.util.List;
class MenuItem {
private String Name;
private String Description;
private int Price;
public MenuItem(String Name, String Description, int Price) {
this.Description = Description;
this.Price = Price;
this.Name = Name;
}
public String getDescription() {
return Description;
}
public String getName() {
return Name;
}
public int getPrice() {
return Price;
}
}Menu interface defines the contract for all menu types. Any concrete menu class must implement this, ensuring it provides a createIterator() method to return a standard Iterator.
// Creating the Interface for Menu which will return the iterator
interface Menu {
public Iterator<MenuItem> createIterator();
}This Dinner menu uses an ArrayList internally to store its items. Since ArrayList is a standard Java collection, we can simply return its built-in iterator from the createIterator() method.
// Creating the Menus where it depends on the ArrayList
// It has the ArrayList as Implementation.
class DinnerMenu implements Menu {
private ArrayList<MenuItem> menuItems = new ArrayList<MenuItem>();
public DinnerMenu() {
addItem("Paneer Masala", "Curry Paneer Masala", 123);
addItem("Butter Paneer Masala", "Tadka butter Paneer Masala", 134);
addItem("Tawa Paneer Masala", "Delicious Paneer in the Tawa", 178);
}
// Returning the Java Inbuilt iterator.
@Override
public Iterator<MenuItem> createIterator() {
return menuItems.iterator();
}
public void addItem(String name, String description, int price) {
MenuItem menuItem = new MenuItem(name, description, price);
this.menuItems.add(menuItem);
}
}Dessert menu uses a simple fixed-size array (MenuItem[]) for its internal implementation. Because a raw array does not automatically provide a standard Iterator, we must create a custom iterator specifically for this collection type.
//Creating the another menu which implements the array so for it we need to create our custom iterator
class DessertMenu implements Menu {
private final int SIZE = 3;
private int numberofItem = 0;
private MenuItem[] items = new MenuItem[SIZE];
public DessertMenu() {
addItem("Gulab Jamun", "Sweet and Juicy ", 89);
addItem("Rasmalai", "Pure Milk Rasmalai", 350);
addItem("Rabdi", "Pure and Fresh Milk Rabdi", 230);
}
public void addItem(String name, String description, int price) {
MenuItem menuItem = new MenuItem(name, description, price);
if (numberofItem < SIZE) {
items[numberofItem++] = menuItem;
} else {
System.err.println("Number of Items Reached");
}
}
// For this array-based menu, we return an instance of our custom iterator.
@Override
public Iterator<MenuItem> createIterator() {
return new DessertMenuIterator(this.items);
}
}DessertMenuIterator is the custom iterator created specifically to traverse the raw MenuItem[] array used by the DessertMenu. It implements the standard Iterator<MenuItem> interface, providing uniform access methods like hasNext() and next().
// Creating our custom iterator using the java Iterator
class DessertMenuIterator implements Iterator<MenuItem> {
private MenuItem[] items;
private int position = 0;
public DessertMenuIterator(MenuItem[] menuItems) {
this.items = menuItems;
}
@Override
public boolean hasNext() {
// Check if the current position is within the bounds of the array and the item is not null
return position < items.length && items[position] != null;
}
@Override
public MenuItem next() {
// Return the current item and advance the position
return this.items[position++];
}
@Override
public void remove() {
throw new UnsupportedOperationException("This method is not implemented for the DessertMenuIterator");
}
}The Waitress class is the client that depends only on the high-level Menu interface and the standard Iterator interface. This allows her to work with any menu implementation without knowing or caring if the menu uses an ArrayList, a raw Array, or any other collection internally.
// Implementing the Waitress Code
class Waitress {
private List<Menu> menus;
public Waitress(List<Menu> menu) {
this.menus = menu;
}
public void printMenu() {
// Loop through all the menus provided
for (Menu currentmenu : menus) {
System.out.println("\n--- " + currentmenu.getClass().getSimpleName() + " Menu ---");
// Ask the menu to create its appropriate iterator
Iterator<MenuItem> iterator = currentmenu.createIterator();
// Pass the standard iterator to the printing method
printMenu(iterator);
}
}
// Printing all the Menu items present in the Menus using the Iterator
private void printMenu(Iterator<MenuItem> iterator) {
// The iteration logic is now uniform regardless of the underlying collection type
while (iterator.hasNext()) {
MenuItem menuItem = iterator.next();
System.out.print(menuItem.getName() + ", ");
System.out.print("$" + menuItem.getPrice() + " --- ");
System.out.println(menuItem.getDescription());
}
}
}This is the main class where we demonstrate the pattern. We create instances of different menu types and pass them to the Waitress. The Waitress successfully prints both menus using a single, unified iteration logic defined by the Iterator interface.
public class IteratorPatternDemo {
public static void main(String[] args) {
// Initiating the menu classes
Menu desertMenu = new DessertMenu();
Menu dinnerMenu = new DinnerMenu();
// The Waitress accepts a list of Menu objects, regardless of their internal implementation.
Waitress waitress = new Waitress(new ArrayList<Menu>() {
{
add(desertMenu);
add(dinnerMenu);
}
});
waitress.printMenu();
}
}Now, whenever any new Menu Arrives, the developer only needs to create the Menu using the Menu interface and implement its specific createIterator() method. The new Menu is then simply added to the ArrayList of the Waitress, and the existing iteration logic remains unchanged. This is the power of the Iterator Pattern: decoupling the client (Waitress) from the collection structure (Menu implementation).
Output:
DessertMenu ==
Gulab Jamun, 89 --- Sweet and Juicy
Rasmalai, 350 --- Pure Milk Rasmalai
Rabdi, 230 --- Pure and Fresh Milk Rabdi
DinnerMenu ==
Paneer Masala, 123 --- Curry Paneer Masala
Butter Paneer Masala, 134 --- Tadka butter Paneer Masala
Tawa Paneer Masala, 178 --- Delicious Paneer in the TawaThese is the output for the IteratorpatternDemoclass.
Real World Example
The Iterator Pattern is used in almost every application where element iteration is required. Key examples include:
- Java Collections Framework: All core collection classes (like
ArrayList,HashSet,HashMapkeys/values) implement theIterableinterface, which provides theiterator()method. - JDBC: Iterators are implicitly used when reading result sets from a
SELECTquery. - I/O buffers: Iteration is used when sequentially reading data from files or streams.
Design Principles:
- Encapsulate What Varies - Identify the parts of the code that are going to change and encapsulate them into separate class just like the Strategy Pattern.
- Favor Composition Over Inheritance - Instead of using inheritance on extending functionality, rather use composition by delegating behavior to other objects.
- Program to Interface not Implementations - Write code that depends on Abstractions or Interfaces rather than Concrete Classes.
- Strive for Loosely coupled design between objects that interact - When implementing a class, avoid tightly coupled classes. Instead, use loosely coupled objects by leveraging abstractions and interfaces. This approach ensures that the class does not heavily depend on other classes.
- Classes Should be Open for Extension But closed for Modification - Design your classes so you can extend their behavior without altering their existing, stable code.
- Depend on Abstractions, Do not depend on concrete class - Rely on interfaces or abstract types instead of concrete classes so you can swap implementations without altering client code.
- Talk Only To Your Friends - An object may only call methods on itself, its direct components, parameters passed in, or objects it creates.
- Don’t call us, we’ll call you - This means the framework controls the flow of execution, not the user’s code (Inversion of Control).
- A class should have only one reason to change - This emphasizes the Single Responsibility Principle, ensuring each class focuses on just one functionality.
