Definition
The Composite Pattern allows you to compose objects into tree structures to represent part-whole hierarchies. Composite lets clients treat individual objects (Leaves) and compositions of objects (Composites) uniformly.
Real World Analogy
The Composite Pattern allows you to create objects in a tree-like structure to represent hierarchies. The core benefit is that the client code can work recursively with the entire hierarchy or any single part of it without needing to know whether it’s dealing with a single object (a Leaf) or a collection (a Composite).
Consider the corporate organizational hierarchy starting with the CEO. This structure is a perfect analogy for the Composite Pattern.
The structure composes objects into a tree-like hierarchy to represent part-whole relationships. The Composite Pattern is composed of two main types of nodes:
- Leaf Node: Represents an individual object (e.g., a Developer). It has no children.
- Composite Node: Represents a collection of objects (e.g., CEO, Manager, Team Lead). It can contain other Leaf or Composite nodes.

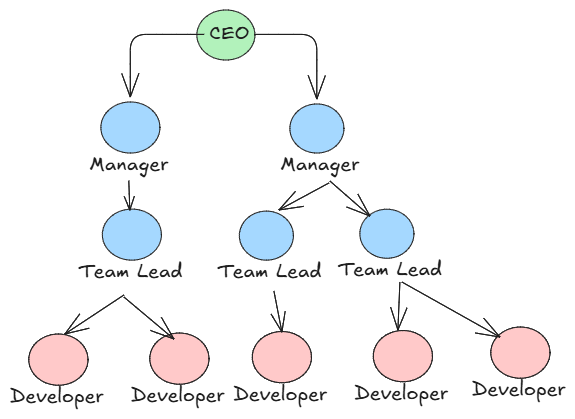

Example of Corporate Organizational Hierarchy
Design
The Composite Pattern relies on a common Component interface or abstract class that is implemented by both Leaves and Composites, ensuring they can be treated uniformly.
classDiagram direction TB class Employee { - String name - int Salary - String role + String getName() + String getRole() + int getSalary() + void addEmployee(Employee) + void removeEmployee(Employee) + abstract void displayDetails() } class Developer { + void displayDetails() } class Manager { - List~Employee~ employees + void addEmployee(Employee) + void removeEmployee(Employee) + void displayDetails() } class Client { } Employee <|-- Developer : implements component Employee <|-- Manager : implements component Manager o-- Employee : contains Client ..> Employee : uses
Implementation in Java
This abstract class, Employee, is the Component that all objects in the hierarchy implement. It provides the standard methods (displayDetails()) that apply to both individual employees and teams, enabling uniform treatment by the client. It throws an UnsupportedOperationException for management methods by default, ensuring Leaf nodes don’t accidentally try to manage children.
import java.util.ArrayList;
import java.util.List;
abstract class Employee {
private String name;
private int Salary;
private String role;
public Employee(String name, int Salary, String role) {
this.name = name;
this.Salary = Salary;
this.role = role;
}
public String getRole() {
return role;
}
public String getName() {
return name;
}
public int getSalary() {
return Salary;
}
// These methods are for managing children. They are included in the Component
// to maintain a uniform interface, but the default implementation throws an
// exception, indicating that Leaf nodes do not support these operations.
public void addEmployee(Employee employee) {
throw new UnsupportedOperationException("Operation not supported by this employee type (Leaf node)");
}
public void removeEmployee(Employee employee) {
throw new UnsupportedOperationException("Operation not supported by this employee type (Leaf node)");
}
// This is the common operation that clients use to process the node.
public abstract void displayDetails();
}
The Developer class represents the Leaf component. As an individual employee, it is the simplest object in the hierarchy and cannot contain any subordinates. It only implements the displayDetails() method.
class Developer extends Employee {
public Developer(String name, int salary, String role) {
super(name, salary, role);
}
@Override
public void displayDetails() {
// Displays the details of the individual Developer (Leaf).
System.out.println("\tRole: " + getRole() + "\tName: " + getName() + "\tSalary: " + getSalary());
}
}
The Manager class is the Composite component. It holds a list of child Employee objects (its subordinates) and provides the concrete logic for adding/removing children. Crucially, its displayDetails() method executes its own logic and then recursively calls displayDetails() on all its children.
class Manager extends Employee {
private List<Employee> employees = new ArrayList<>();
public Manager(String name, int salary, String role) {
super(name, salary, role);
}
@Override
public void addEmployee(Employee employee) {
// Implementation of the Composite operation to add a child (Employee).
this.employees.add(employee);
}
@Override
public void removeEmployee(Employee employee) {
// Implementation of the Composite operation to remove a child (Employee).
this.employees.remove(employee);
}
@Override
public void displayDetails() {
// 1. Displays its own details first.
System.out.println("Role: " + getRole() + "\tName: " + getName() + "\tSalary: " + getSalary());
System.out.println("-----------------------------------");
// 2. Then, recursively delegates the request to all its children (Employees).
for (Employee employee : this.employees) {
employee.displayDetails();
}
}
}
This is the Client code that uses the Composite Pattern. It first builds the hierarchical tree structure by adding Leaves and Composites to their parent Composites. Then, it only needs to call displayDetails() on the root object (ceo), and the recursive nature of the Composite handles the entire traversal and display.
public class CompositePattern {
public static void main(String[] args) {
// NOTE: For a complete runnable example, the Employee, Developer, and Manager
// classes would need to be in this file or correctly imported.
// Create Leaf nodes (Developers)
Employee developer1 = new Developer("John Dantle", 15000, "Frontend Developer");
Employee developer2 = new Developer("Carry Yadav", 20000, "Backend Developer");
Employee developer3 = new Developer("Sunny wiley", 12000, "SQL");
Employee developer4 = new Developer("Alice", 30000, "Full Stack Developer");
// Create Composite nodes (CEO, Managers, Team Leads)
Employee ceo = new Manager("Danny", 1300000, "CEO");
Employee manager1 = new Manager("Bob Rao", 1000000, "Manager");
Employee manager2 = new Manager("Frank", 120000, "Manager");
Employee teamlead1 = new Manager("Franklin", 90000, "Team Lead");
Employee teamlead2 = new Manager("Rosario", 100000, "Senior Team Lead");
// Build the hierarchy
ceo.addEmployee(manager1);
ceo.addEmployee(manager2);
manager1.addEmployee(teamlead1);
manager2.addEmployee(teamlead2);
manager2.addEmployee(teamlead1);
teamlead1.addEmployee(developer1);
teamlead1.addEmployee(developer2);
teamlead2.addEmployee(developer3);
teamlead2.addEmployee(developer4);
teamlead2.addEmployee(developer2);
System.out.println("--------------- Company Organizational Chart ---------------------\n");
// Client code uses the uniform Component interface (Employee) to process
// the entire tree structure recursively, starting from the root (CEO).
ceo.displayDetails();
}
}
Output:
--------------- Company Organizational Chart ---------------------
Role: CEO Name: Danny Salary: 1300000
-----------------------------------
Role: Manager Name: Bob Rao Salary: 1000000
-----------------------------------
Role: Team Lead Name: Franklin Salary: 90000
-----------------------------------
Role: Frontend Developer Name: John Dantle Salary: 15000
Role: Backend Developer Name: Carry Yadav Salary: 20000
Role: Manager Name: Frank Salary: 120000
-----------------------------------
Role: Senior Team Lead Name: Rosario Salary: 100000
-----------------------------------
Role: SQL Name: Sunny wiley Salary: 12000
Role: Full Stack Developer Name: Alice Salary: 30000
Role: Backend Developer Name: Carry Yadav Salary: 20000
Role: Team Lead Name: Franklin Salary: 90000
-----------------------------------
Role: Frontend Developer Name: John Dantle Salary: 15000
Role: Backend Developer Name: Carry Yadav Salary: 20000
These is the output of the above provided code for Composite Pattern.
Real World Example
The Composite Pattern is a fundamental design principle for organizing any structure that involves recursive composition.
It is heavily used in Graphical User Interface (GUI) toolkits like Java Swing or JavaFX.
- The base class,
Component(or similar), acts as the Component interface. - Simple elements like buttons or text fields are Leaf nodes.
- Containers like
JPanelorJFrameact as Composite nodes, as they hold other components (either simple components or other nested containers).
This allows the UI rendering system to treat a single button and a complex, multi-layered window structure with a single, uniform method call (e.g., draw()).
Design Principles:
- Encapsulate What Varies - Identify the parts of the code that are going to change and encapsulate them into separate class just like the Strategy Pattern.
- Favor Composition Over Inheritance - Instead of using inheritance on extending functionality, rather use composition by delegating behavior to other objects.
- Program to Interface not Implementations - Write code that depends on Abstractions or Interfaces rather than Concrete Classes.
- Strive for Loosely coupled design between objects that interact - When implementing a class, avoid tightly coupled classes. Instead, use loosely coupled objects by leveraging abstractions and interfaces. This approach ensures that the class does not heavily depend on other classes.
- Classes Should be Open for Extension But closed for Modification - Design your classes so you can extend their behavior without altering their existing, stable code.
- Depend on Abstractions, Do not depend on concrete class - Rely on interfaces or abstract types instead of concrete classes so you can swap implementations without altering client code.
- Talk Only To Your Friends - An object may only call methods on itself, its direct components, parameters passed in, or objects it creates.
- Don’t call us, we’ll call you - This means the framework controls the flow of execution, not the user’s code (Inversion of Control).
- A class should have only one reason to change - This emphasizes the Single Responsibility Principle, ensuring each class focuses on just one functionality.
